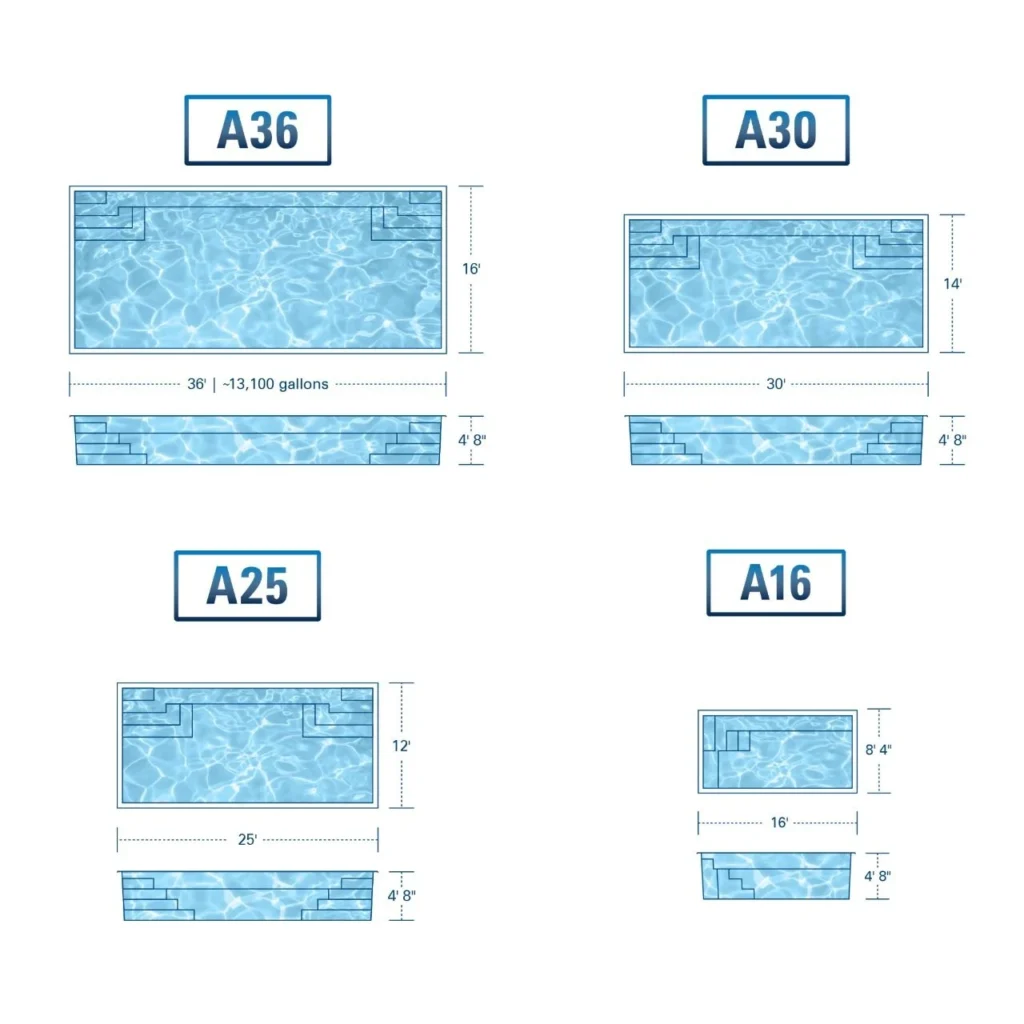

12′ × 25′ / 14′ × 30′ / 16′ × 36′ | Depth 4′ 8″ flat bottom
≈ 45 m³
≈ 850 kg
1 pool / 40′HQ · mixed models OK
A25 / A30 / A36
shell outline — wall thickness, skimmer and return positions
| ✔ Model | |
| ✔ Dimensions | |
| ✔ Depth | 3′ 9.5″ (Shallow) to 6′ 2.5″ (Deep) |
| ✔ Material | Hand-laid FRP with Vinyl-ester resin |
| ✔ MOQ | 1 x 40′HQ (Mixed models allowed) |
| ✔ Port | FOB Tianjin/Qingdao (TBC) |
A Series
shells are hand-laid in our own FRP workshop — no outsourced lamination, full material traceability batch by batch.
| Step | Process | Control Point |
|---|---|---|
| 01 | Mould preparation & release | Mould cleaned, waxed and PVA-sealed before every lay-up |
| 02 | Gelcoat spray-up | ISO-NPG gelcoat to 0.5–0.8 mm, colour batch recorded |
| 03 | Vinyl-ester barrier coat | Osmotic-blister barrier applied over cured gelcoat |
| 04 | Hand lay-up of laminate | Chopped strand mat + woven roving, hand-rolled to remove air |
| 05 | Core & structural rib bonding | PU core / ribs bonded for stiffness and point-load resistance |
| 06 | Demould, water test & QC | Dimensions verified, 24 h water test, batch traceability file issued |
A25 / A30 / A36
Hand-laid FRP build-up from the outside gelcoat inwards. Total wall section ≈ 8–12 mm.
| # | Layer | Thickness | Function |
|---|---|---|---|
| 1 | ISO-NPG UV-stable gelcoat | 0.5–0.8 mm | Colour-fast, water-tight outer surface |
| 2 | Vinyl-ester barrier coat | ~0.6 mm | Osmotic-blister resistance |
| 3 | Chopped strand mat (450 g/m²) | ~1.0 mm | Resin-rich bedding against the barrier |
| 4 | Woven roving (600 g/m²) | ~1.2 mm | Longitudinal tensile strength |
| 5 | Core / structural rib | 3–8 mm | Stiffness and point-load resistance |
| 6 | Woven roving (800 g/m²) | ~1.2 mm | Overall hull rigidity |
| 7 | Inner skin mat (300 g/m²) | ~0.7 mm | Smooth inner surface, chemical resistance |
Sourcing a fiberglass pool mold? Here is what buyers ask us most about lead time, MOQ, custom tooling and shipping.
Standard lead time is 25–35 working days after deposit and design confirmation, plus ocean transit. Repeat and mixed-model orders are scheduled by production slot — ask your account manager for the current slot.
A Series
Our MOQ is one 40′HQ container. Sizes can be mixed within one order.
Yes. We build custom fiberglass molds from your drawings or reference pool — CAD review, plug and mold fabrication, and sample approval before mass production. Tooling lead time is quoted per project.
We ship FOB Tianjin / Qingdao (TBC). Other Chinese ports can be arranged on request, and EXW / CIF terms are available.
The A Series fiberglass pool is a flat-bottom design for buyers seeking a practical swimming and social space. Compare the model drawing, bench layout and available site area before selecting a shell for a residential development, hospitality project or distributor order.
Request the current A Series drawing for your preferred model. Confirm external shell dimensions, water depth, entry steps, bench seating and equipment connection positions against that drawing. Excavation dimensions and structural preparation should be confirmed by the local installer for the actual site.
Ask for the shell, filtration equipment, fittings, lighting, packing and freight to be itemized. If you require an automatic pool cover, confirm compatibility, track details and whether the cover system is included as a separate quoted item. A pool cover should not be assumed to be supplied with the shell.

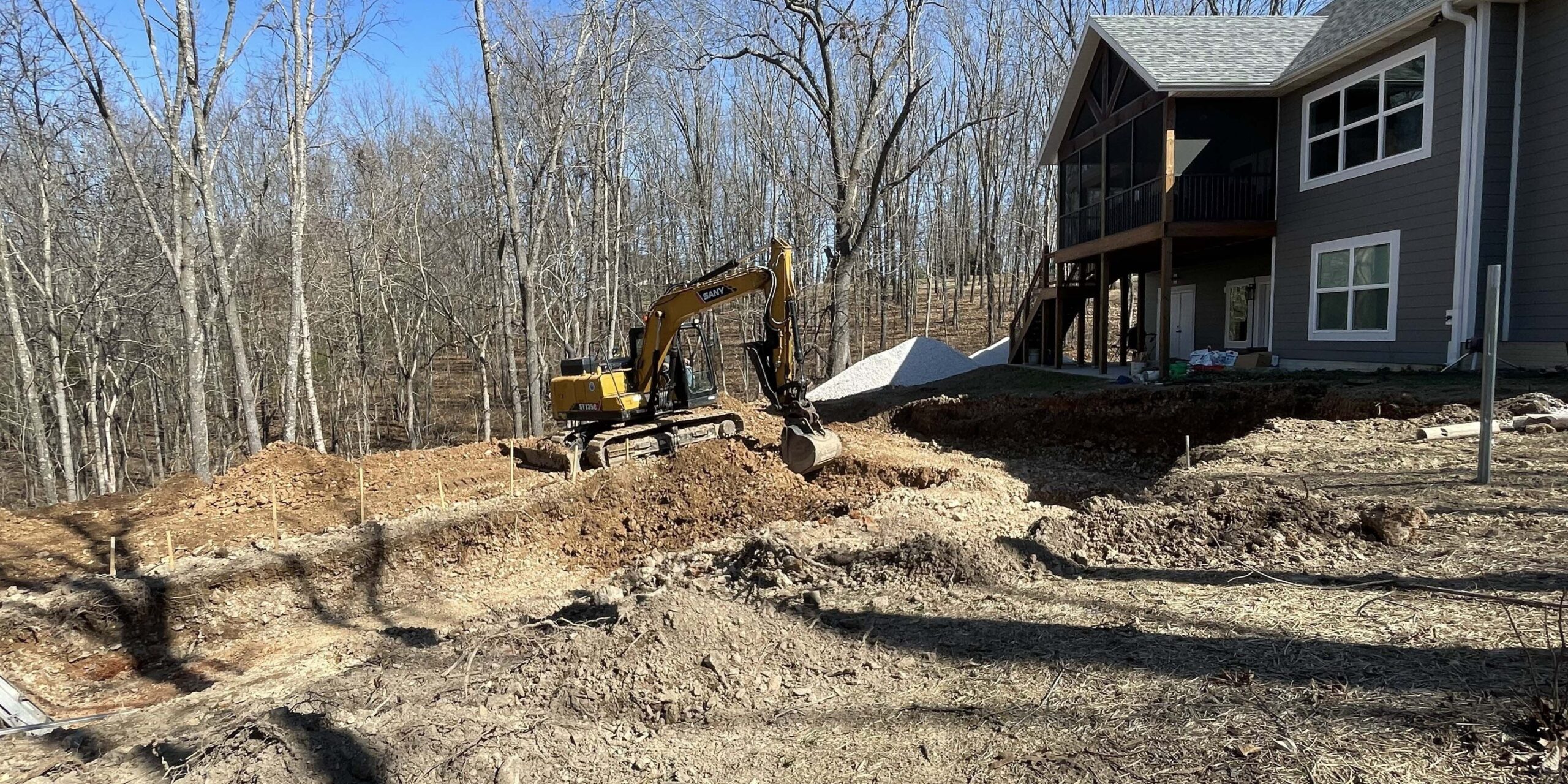

Before ordering, review access for the delivery vehicle, unloading equipment, crane positioning and the route to the excavation. Your local contractor should assess ground conditions, drainage and installation requirements. Confirm the packing method and container loading plan for the selected model and order quantity.
Request A Series drawings and a project quotation. Send your destination country and port, preferred model, quantity, equipment requirements and target delivery date.
